Use the Terraform editor

The Terraform editor is a governed workspace for reviewing and revising source. File edits are not cloud changes. Runner actions, approvals, and apply use separate backend-owned workflows.

Typical time

20–40 minutes

You need

A linked, saved Terraform workspace

Outcome

A reviewed source revision and bounded evidence

Step 1: Verify the editor context

Confirm Project, Environment, Region, Revision, Connection, and current Run in the expanded header.

Use More editor options to navigate to Runs, Terminal, History, Diff, Architecture Studio, Workspace overview, or Connections. Copy workspace link and Copy workspace ID place context in the browser clipboard; treat identifiers and access context according to your organization’s sharing policy.

Detach editor, Dock editor, theme, and panel controls change only the browser layout.

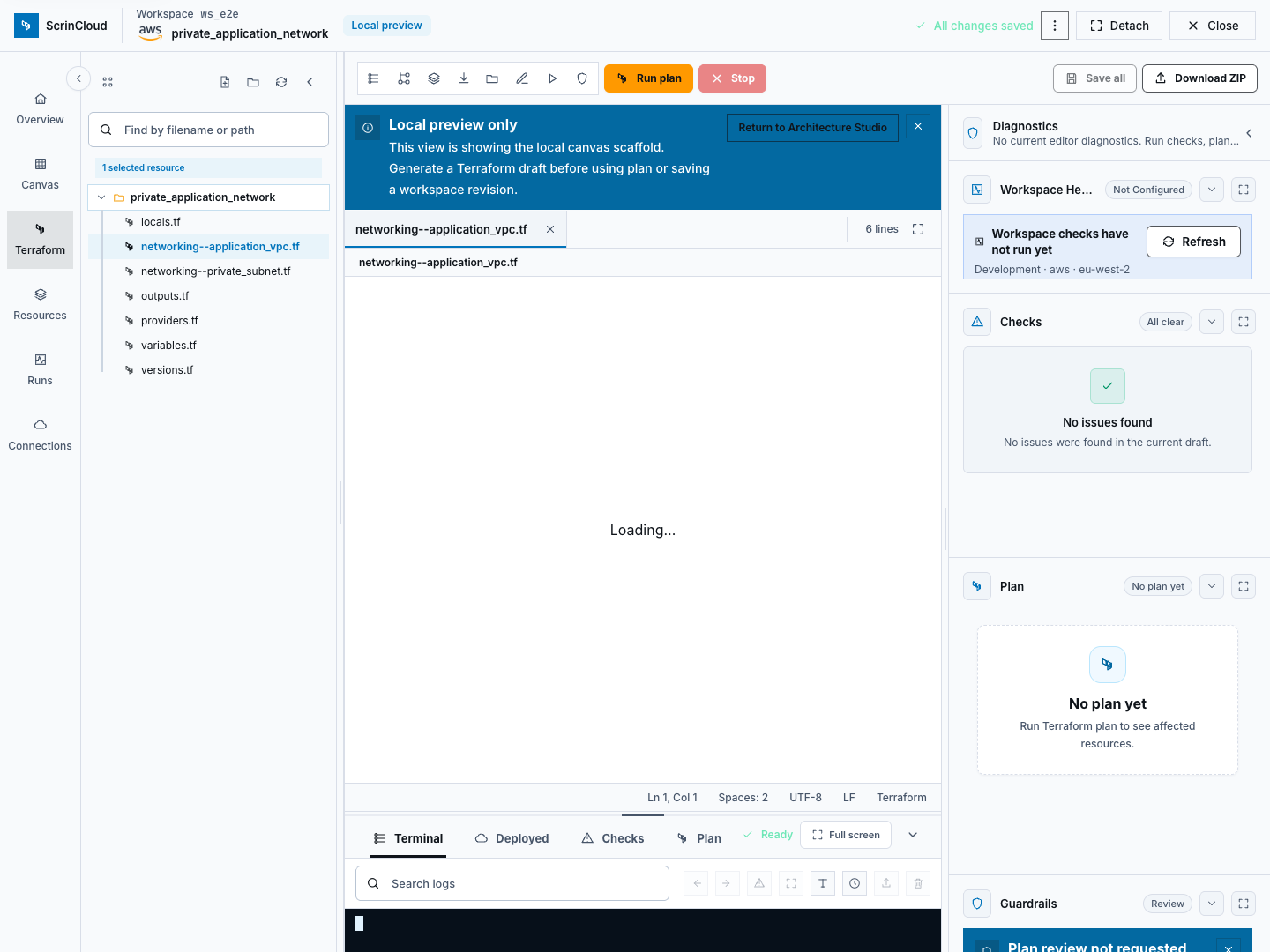

Terraform editor 1 of 9 · Screenshot placeholder

Confirm the workspace and revision

Show synthetic Project, Environment, Region, Revision, Connection, Run, and More editor options context.

Future capture briefHide organization, project, workspace, revision, provider, run, repository, state-backend, and user identifiers.

Step 2: Create and organize files

The file browser supports:

• Create file and Create folder;
• search and clear search;
• Reload workspace files;
• Rename, Cut, Copy, Paste, and Delete from the context menu; and
• protected-file restrictions where an item must not be renamed or deleted.

The File menu also provides New File, New Folder, Save, Save All, Rename File, Duplicate File, Download Current File, Download Workspace ZIP, and Close File.

Most text and tree edits remain in the browser’s dirty-file state until a save succeeds. Reloading or leaving with dirty files can invoke unsaved-change protection.

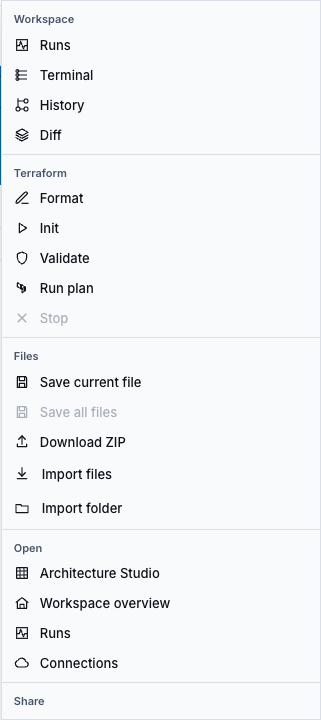

Terraform editor 2 of 9 · Screenshot placeholder

Use file actions deliberately

Show the file browser, File menu, and tree context actions with harmless synthetic files.

Future capture briefDo not show customer Terraform, backend configuration, module URLs, variables, state, plans, credentials, or local paths.

Step 3: Import or download source

Use Import Terraform files, Import files, or Import folder only for reviewed source. Confirm the proposed file set, conflicts, rejected paths, and unsafe-file checks before applying the import.

Use Download Current File or Download ZIP only after checking the package boundary. Never include state, saved plans, credentials, environment files, keys, logs, hidden secrets, or unreviewed binaries.

Import and download do not prove source validity and do not run Terraform.

Terraform editor 3 of 9 · Screenshot placeholder

Review source portability

Show a synthetic import review and the current file/workspace download actions.

Future capture briefHide file contents, paths tied to a customer, repository details, archives, browser downloads, state, plans, and secrets.

Step 4: Edit and save the intended revision

The Edit, Selection, View, Go, and Help menus operate on the current editor or local view. Monaco shortcuts, autocomplete, hover, find, replace, symbol navigation, word wrap, and minimap do not contact a cloud provider.

Choose Save current file, Save, Save all files, or Save All only after reviewing every dirty file. A successful save creates or updates the workspace revision used by later runs.

Editing after a plan makes that plan stale for delivery. Create a new plan and repeat governance review.

Terraform editor 4 of 9 · Screenshot placeholder

Save a reviewable source revision

Show synthetic dirty-file indicators followed by Save All and a new revision state.

Future capture briefHide code, revision digests, actors, timestamps, repository metadata, and workspace identifiers.

Step 5: Run bounded preparation actions

The toolbar exposes:

• Format for canonical source formatting;
• Init to prepare the approved runner context;
• Validate for Terraform configuration validation;
• Run plan for a real runner-backed plan;
• Stop while the current editor-started command is active; and
• Save all separately from runner actions.

Format, init, validate, and plan are backend or runner work, not local editor proof. Wait for the terminal result and the persisted run record. Stop requests cancellation; it does not prove the runner stopped until a terminal status is returned.

Apply is not an editor toolbar action. Use the governed approval/apply flow.

Terraform editor 5 of 9 · Screenshot placeholder

Separate preparation from apply

Show Format, Init, Validate, Run plan, Stop, and Save all with one safe running state.

Future capture briefDo not show terminal output, commands, credentials, state, plan content, provider targets, or real run IDs.

Step 6: Use terminal evidence safely

The terminal panel renders sanitized runner events rather than unrestricted browser shell access. Controls include:

• search, Previous match, and Next match;
• First error and Final result navigation;
• Wrap lines and timestamp visibility;
• Download safe logs; and
• Clear local view.

Clear local view removes only the displayed browser output. It does not delete backend logs, run history, audit evidence, or cloud resources. Review every safe-log download before sharing it.

Terraform editor 6 of 9 · Screenshot placeholder

Navigate sanitized runner output

Show the terminal controls with fabricated non-sensitive output and a final result.

Future capture briefExclude raw provider output, tokens, secrets, state, resource addresses, account IDs, request IDs, and internal runner details.

Step 7: Compare History and Diff

Open History to select a saved revision and Diff to inspect changed files and source differences. Review the read-only warning, revision identity, changed-file filter, and summary before using evidence in a plan decision.

History and diff are read actions. They do not restore source or change the canvas automatically. If a revision is edited or restored through another workflow, rerun validation and plan against the new revision.

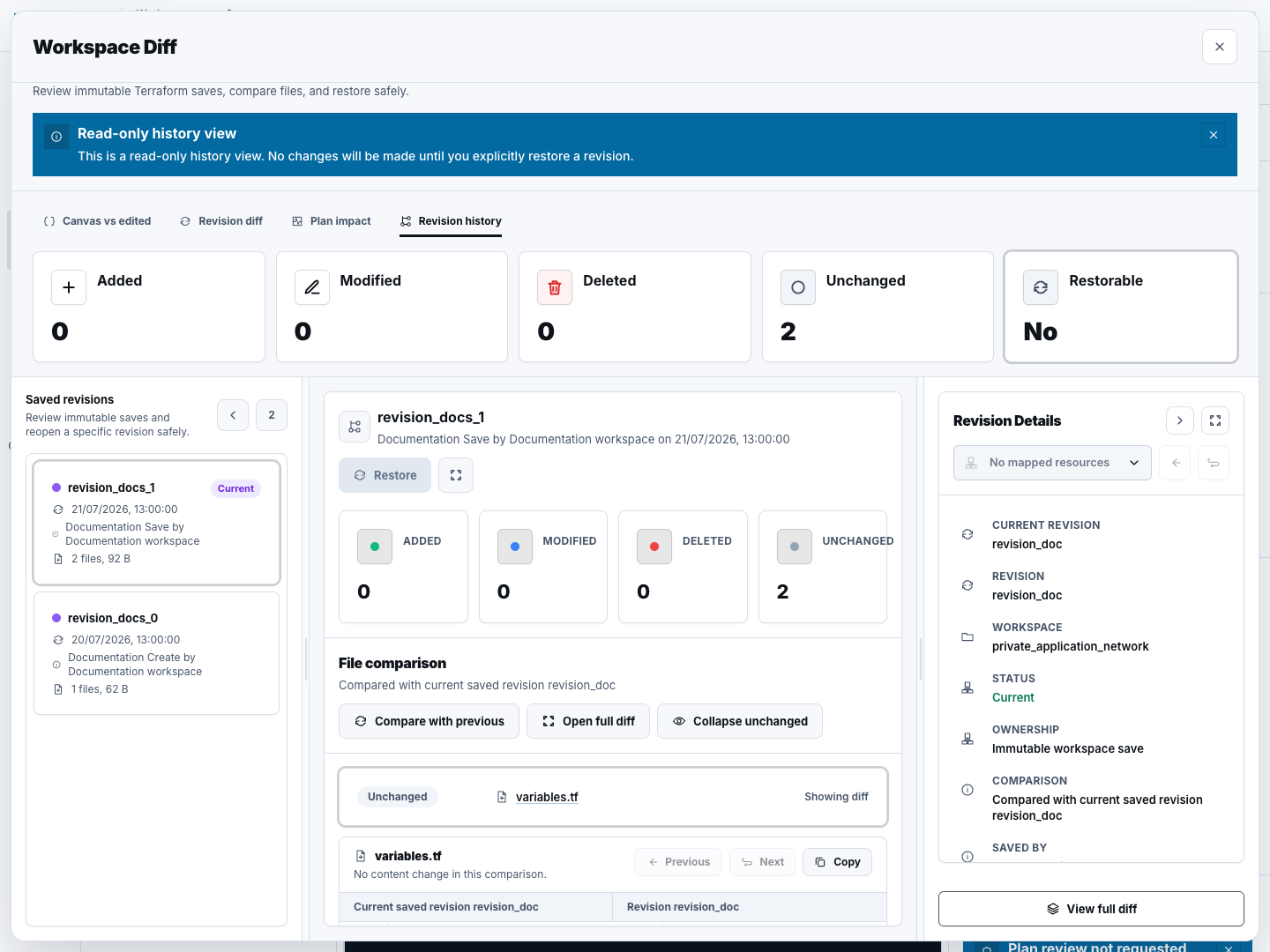

Terraform editor 7 of 9 · Screenshot placeholder

Compare exact saved source

Show synthetic History and Diff views with changed-file filters and read-only revision context.

Future capture briefHide code, file paths, revision IDs, actors, timestamps, resource addresses, and repository metadata.

Step 8: Review Code Sync Preview

When code-to-canvas sync is offered, open Code Sync Preview and review:

• Native Resource Updates;
• Custom Terraform Resources;
• Code-Managed Resources;
• Unsupported Resources;
• Forbidden Resources;
• safe canvas actions; and
• variables.

Choose Apply only after forbidden and unsupported scope is understood. Applying the preview changes the design/source relationship; it does not apply Terraform to a provider. Save the resulting diagram and source deliberately, then revalidate.

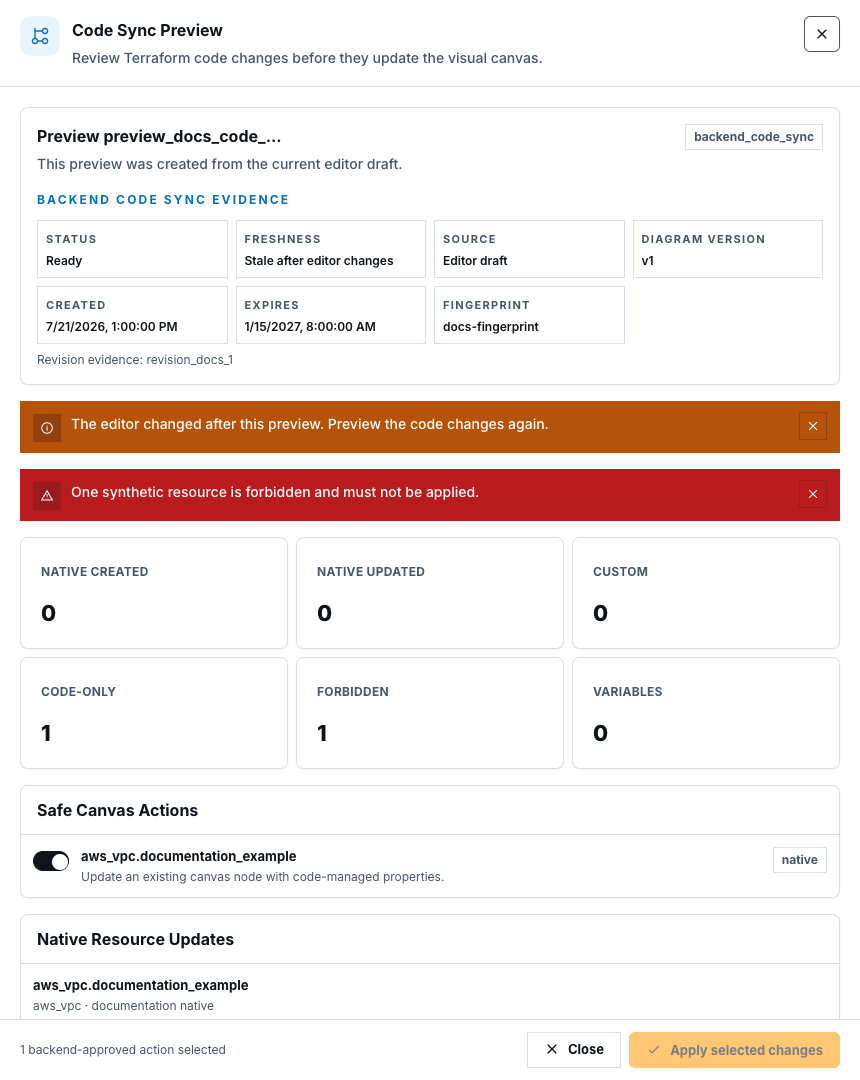

Terraform editor 8 of 9 · Screenshot placeholder

Review code-to-canvas changes

Show a synthetic Code Sync Preview with native, custom, code-managed, unsupported, and forbidden sections.

Future capture briefUse fabricated resources and variables. Hide code, values, addresses, provider IDs, and customer architecture.

Step 9: Check health and deployment inventory

Workspace health summarizes backend-owned readiness categories and exposes Refresh. A refreshed health report is not a Terraform plan or provider apply.

Deployed infrastructure shows captured Resources and Outputs from the latest eligible apply evidence. Use Refresh, Load more, search, copy-safe values, and stale-evidence notices carefully.

Sensitive outputs remain hidden. Inventory is a recorded snapshot and can be stale; provider reality and current drift require separate verification.

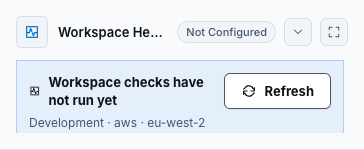

Terraform editor 9 of 9 · Screenshot placeholder

Read health and captured inventory

Show synthetic workspace health and deployed Resources/Outputs with a stale-evidence warning.

Future capture briefHide output values, state, resource addresses, provider IDs, run/revision/plan digests, and customer infrastructure.

Check your result

Confirm no unexpected dirty files remain, the intended revision is saved, runner actions reached an authoritative terminal state, downloaded material is safe, and any code-sync or inventory evidence is tied to the correct workspace.

Common blockers

Save All is disabled

The workspace may be read-only, no file may be dirty, a save may already be in progress, or an active terminal action may block the operation.

Init, Validate, or Run plan fails

Review the sanitized final result, workspace health, connection, variables, module access, and saved revision. Do not expose raw logs or broaden provider permissions without a reviewed requirement.

Deployment inventory is empty or stale

Inventory requires eligible captured apply evidence. Refresh can update backend readback, but it does not run apply or drift remediation.

Code Sync Preview contains forbidden resources

Do not apply the preview. Remove or redesign forbidden source and repeat the preview against the reviewed revision.

Continue

Create a bounded action with Create a Terraform run, then Review plans safely before approval or apply.
